Driving Edge Computing and AI to New Heights
Advantech provides highly expandable and reliable edge computing, AI, and industrial solutions with diverse form factors that use the latest AMD EPYC™ Embedded series and RYZEN™ Embedded series processors.
The latest AMD EPYC™ Embedded 9005 Series processors, built on advanced "Zen 5" and "Zen 5c" architectures, are fully compatible with the widely deployed SP5 platform. Offering a versatile range from 8 cores up to an impressive 192 cores, these processors continue the legacy of record-breaking performance and energy efficiency seen in previous generations.
Advantech leverages strong hardware design, modern manufacturing capabilities, and complete global services to build high efficiency solutions tailored to deliver higher value to enterprise and industrial customers.
Unparalleled Versatility with the AMD EPYC™ Embedded 9005 Series
Up to 192 Cores
Scalable
Performance
3/4nm Process
Advanced Compute
Density
12 DDR5 Channels
High Throughput & Capability up to 9TB per Channel
Up to 160 Lanes
Higher I/O Throughput &
Bandwidth with PCIe 5.0
5 GHz
Faster
Communication
AI Acceleration
Instinct™ MI210
GPU Card Certified
*Performance will change depending on selected SKU
New Product Highlights
ASMB-831
Industrial Server ATX MB
- Single AMD EPYC™ Embedded 9005 Series Processor
- 6 x DDR5 4800 MHz RDIMM, up to 576GB
- 5 x PCIe 5.0 x16 and 2 x PCIe 5.0 x8 for four double-deck cards
SKY-721E3
HCI & Storage Server
- Dual AMD EPYC™ Embedded 9005 Series Processors
- 24 x DDR5 4800 MHz RDIMM, up to 3TB
- Up to 12 Bays 3.5” SAS/SATA or 24 Bays 2.5” Hot-swap SAS/SATA Driveå
SKY-821E3
Short Depth Edge Server
- Dual AMD EPYC™ Embedded 9005 Series Processors
- 24 x DDR5 4800 MHz RDIMM, up to 3TB
- Up to 4 FHFL, 2 FHHL and 2 Low Profile PCIe 5.0

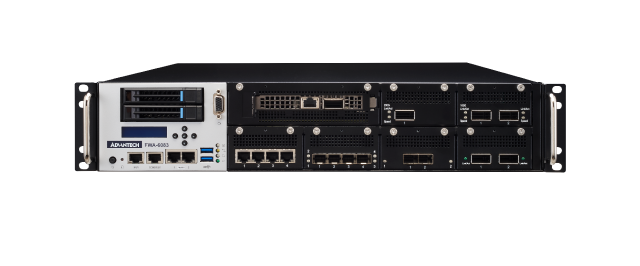

FWA-6083/6183
2U Network Appliance
- Single or Dual AMD EPYC™ Embedded 9005 Series Processor
- 16 x DDR5 4800 MHz RDIMM, up to 1TB
- 8 x Advantech NMC slots with PCIe Gen5
Advantech Platforms Based on AMD Series Processors
Industrial Server Motherboards
AMD EPYC™ 8004
- Single AMD® EPYC™ Embedded 8004 Series Server Processor
- 6 x DDR5 4800 MHz ECC RDIMM, up to 576GB
- 4 x PCIe Gen5 x16 slots with CXL support on slot 4/6
- 2 x 10GbE ports & I226 & 2 x 1GbE ports
- 4 x MCIO interface and Five USB 3.2 (Gen1) ports
- 2 x M.2 2280 PCIe Gen4 x4
The Advantech ASMB-561 is a single socket server motherboard ready for AMD EPYC™ 8004 series processors. The server motherboard can effectively meet the demands of edge AI applications, factory automation, automated optical inspection, smart city initiatives, and emerging Al applications.
AMD EPYC™ 9005/9004
- AMD EPYC™ Embedded 9005/9004 Series Server Processors
- 6 x DDR5 4800 MHz RDIMM
- 5 x PCIe 5.0 x16 and 2 x PCIe 5.0 x8 for four double-deck cards
- Intel® X710-AT2 dual 10GbE ports
- 9 x SATA3 and 7 x USB 3.2 Gen1 ports
The new Advantech ASMB-831 is a single socket server motherboard ready for AMD EPYC™ 9004 series processors and is designed to offer high performance, flexible configuration, and high reliability. The Advantech ASMB-831 Server Motherboard can effectively meet the demands of factory automation, Industry 4.0/5.0, smart city initiatives, and emerging Al applications.
AMD EPYC™ 7002/ 7003
- AMD EPYC™ Embedded 7002/7003 processor
- 6 x DDR4 3200 MHz RDIMM up to 128GB per DIMM
- 5 x PCIe 4.0 x16 and 2 x PCIe 4.0 x8
- 2 x GbE + 2 x 10GbE (Intel X550-AT2)
- 9 x SATA3 + 2x NVMe M.2 22110 (PCIe 4.0 /SATA)
The ASMB-830 is a single socket server motherboard powered by AMD EPYC™ 7002/7003 processor to enable industrial server solutions for factory automation, optical inspection, intelligent manufacturing, and medical image applications.
AMD RYZEN™ 7000
- AMD® Ryzen™ Embedded 7000 Processors
- 4 x DDR5 5600 MHz UDIMM up to 128GB
- Triple display DP/HDMI/VGA and dual GbE LAN
- 1 x M.2, 4 x SATA, 4 x USB 3.2 Gen 2
- Optimized PCIe placement for GPU and Frame grabber cards
The AIMB-723 ATX motherboard, powered by the latest AMD Ryzen™ 7000 series processors, delivers high computing performance with a remarkable 7-year lifespan. Its optimized form factor design offers scalability to support performance-demanding industrial tasks, such as AI-based machine vision and AOI applications.
GPU Server
AMD EPYC™ 8004
- Single AMD EPYC™ Embedded 8004 Series Server Processors
- 6 x DDR5 4800 MHz ECC RDIMM, up to 576GB
- Supports 4 x PCIe x16 double-deck FH/10.5" cards or 2 x PCIe x16 double deck FH/10.5" cards + 4 x PCIe x8 single deck FH/10.5" cards
- 800 Watt 1+1 redundant power supply with 80+ platinum level certification
Engineered to meet the rigorous demands of diverse AI applications, the SKY-602E3 GPU server is driven by AMD EPYC™ 8004 Series Processors. It excels in graphics processing for AI applications with four PCIe 5.0 x16 slots, providing high bandwidth for demanding tasks.
It offers additional versatility with four PCIe 5.0 x8 slots for expanded GPU options.
HCI & Storage Server
AMD EPYC™ 9005/9004
- Dual AMD® EPYC™ Embedded 9005/9004 Series Server Processors up to 400W TDP
- Up to 12 bays 3.5" SAS/SATA or 24 bays 2.5" hot-swap SAS/SATA drives support
- 24 x DDR5 6000Mhz RDIMM/3DS RDIMM
- Up to 4 FHFL, 2 FHHL and 2 Low Profile PCIe 5.0
- Support optional front bezel
The new Advantech SKY-721E3 Server is ready for virtualized workloads and Hyper-Converged Infrastructure (HCI) deployments. Featuring dual AMD EPYC™ 9004 series processors with TDPs up to 360W each, and 3TB of ECC RDIMM/LRDIMM DDR5 memory, it provides exceptionally high-density computing performance in a 2U rackmount chassis.
Short Depth Edge Server
AMD EPYC™ 9005/9004
- Dual AMD® EPYC™ Embedded 9005/9004 Series Server Processors up to 400W TDP
- 24 x DDR5 6000Mhz RDIMM/3DS RDIMM
- Up to 4 x FHFL, 2 x FHHL and 2 x low profile PCIe 5.0
- 1 x OCP 3.0 support
The SKY-821E3 is a 2U high-performance edge server featuring dual AMD EPYC™ Embedded 9005/9004 processors. It includes 24 x DDR5 6000Mhz memory slots, and offers versatile PCIe Gen5 expansion options. Additionally, it provides storage capabilities with NVMe and M.2 SSD support, alongside a PCIe Gen5 x16 NIC slot.
AMD EPYC™ 7002/ 7003
- AMD EPYC™ Embedded 7002/7003 processor
- 16 x DDR4-3200 ECC RDIMM/LRDIMM
- 4 x PCIe 4.0 x16 + 2 x PCIe x8, or 2 x PCIe 4.0 x16 + 2 PCIe 4.0 x8 + 2 x PCIe 4.0 x8 + 2 x PCIe x8
- 4 x 2.5" SATA SSD drives or 2 x 2.5" SATA SSD + 2 x NVMe U.2 SSD
- 6 x pluggable, hot-swappable, N+1 redundant fan modules
- 2U 20.4”deep rackmount server
The SKY-8260S is designed and optimized to meet high availability and fulfill business-critical needs. It is equipped with an AMD EPYC™ 7002/7003 Series Processor, which not only upgrades the total core counts per each consumed power watt, but also provides a high performance and highly reliable platform for network edge and virtualization applications.
High Throughput Network Appliances
AMD EPYC™ 7003
- Embedded with AMD EPYC™ 7003 Processors
- 16 x DDR4 ECC RDIMM slots with up to 3200MHz speed and 1TB capacity
- 8 x Advantech network module expansions with PCIe 4.0 bandwidth
- Hot-swappable 2.5" disk bays and system fans, along with redundant PSUs, and 3 x PCIe 4.0 x16 slots
- Advanced security measures by Advantech IPMI for out-of-band management and diagnostics
The FWA-6080 is a robust 2U network appliance, featuring AMD EPYC™ 7003 processors built on the Zen 3 architecture. Tailored for intensive workloads, its single-socket configuration boasts sufficient CPU cores, eliminating the need for additional efforts in software loading optimization between two processors. This high-core-count appliance also facilitates the operation of numerous virtualized applications within a single system, effectively minimizing CAPEX/OPEX.
AMD EPYC™ 9005/9004
- Dual AMD EPYC™ Embedded 9005/9004 Series Server Processors
- 16 x DDR5 ECC RDIMM slots with up to 4800MHz speed and 1TB capacity
- 8 x Advantech network module expansions with PCIe 5.0 bandwidth
- Hot-swappable 2.5" disk bays and system fans, along with redundant PSUs, 1 x HH/HL PCIe 5.0 x16 slot
- Integrated processor security featuring secure root of trust, secure memory encryption (SME), and secure encrypted virtualization (SEV)
The FWA-6183 is a 2U top-tier network appliance, equipped with AMD EPYC™ 9004 processors utilizing the advanced Zen 4/Zen 4c architecture. With a dual-socket configuration optimized for demanding workloads, this 4th Gen EPYC platform shifts to a state-of-the-art 5nm manufacturing process, enabling a remarkable increase in core count from 64 to an unparalleled 128 cores per socket. It seamlessly integrates outstanding Infinity Guard cybersecurity features into the hardware.
AMD EPYC™ 8004
- Embedded with AMD EPYC™ 8004 Processors
- 12 x DDR5 ECC RDIMM slots with up to 4800MHz speed and 768GB capacity
- 4 x Advantech network module expansions with PCIe 5.0 bandwidth
- Hot-swappable system fans, redundant PSUs, and 1 x FH/HL PCIe 5.0 x16 slot
- Advanced processor security features including Secure Memory Encryption (SME) and Secure Nested Paging (SNP)
The FWA-5082 is a 1U performance-optimized network appliance, driven by AMD EPYC™ 8004 processors employing the advanced Zen 4c architecture and 5nm processor technology. Featuring a single-socket configuration tailored for intensive workloads, this new processor platform delivers the best performance per dollar and per watt within the EPYC portfolio. This appliance significantly showcases energy efficiency, system BOM cost optimization, and high core density in a small footprint.
AMD RYZEN™ V3000
- AMD Ryzen™ Embedded V3000 processors
- With clock speeds reaching up to 3.5 GHz, the CPU outperforms comparable tabletop models
- 2 x DDR5 SO-DIMM slots with up to 4800MHz speed and 64GB capacity
- 12 x 1GE RJ-45, 2 x 2.5GE RJ-45, 4 x 10GE SFP+ ports, featuring 2 pairs of LAN Bypass
- Optional support for 4G LTE/5G modules through the RF kit
The FWA-1081 is a power-efficient tabletop network appliance, powered by AMD Ryzen™ V3000 processors. With a next-generation SoC configuration boasting high performance Zen 3 cores, this compact device delivers the exceptional ethernet throughput capabilities and industry-leading power performance across its 4-8 cores. It prominently demonstrates the highest performance per watt among all x86 platforms and is ideal suited for edge and SMB deployments.
Applications
Related Downloads
The new platforms listed above are all available for immediate evaluation and benchmarking. Download to get more information about Advantech + AMD solutions.
