Meet the Broadest Range of Compute & Storage Demands
Advantech, a leading industrial and network edge AI solution provider, has announced the launch of new server platforms based on

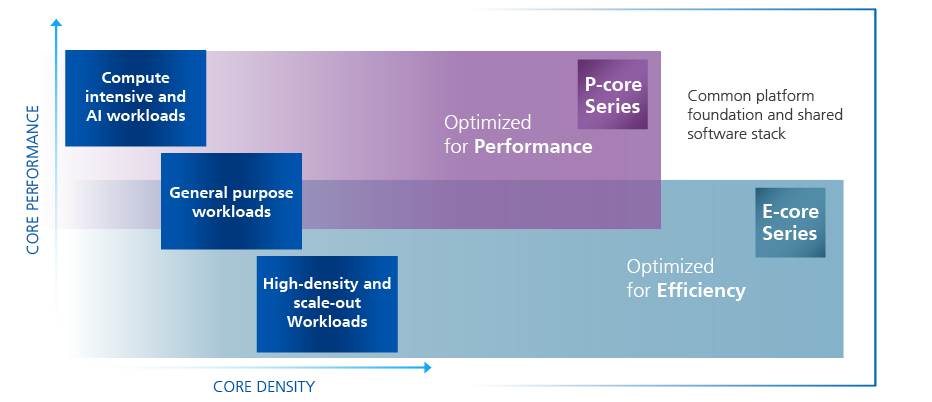

Intel® Xeon® 6 Processors. The Intel Xeon 6 processor family introduces a robust computing platform that excels at both performance and efficiency, crucial for meeting the evolving demands of modern workloads. From powering compute-intensive AI to scaling out cloud-native microservices, it provides versatility for diverse operational requirements.
Intel® Xeon® 6 Processors
- Scalable Performance: Up to 86 cores, 12 channels of DDR5 memory, 64 lanes of CXL 2.0 and 96 lanes of PCIe Gen 5 per processor ensure seamless execution of AI models, data processing, and industrial workloads.
- AI-Ready Architecture: Features Intel® Deep Learning Boost (DL Boost) and Advanced Matrix Extensions (AMX) for accelerated AI inference and training tasks.
- Energy Efficiency: delivering exceptional performance and efficiency across the widest range of workloads.
5th Gen Intel® Xeon® Scalable processor
- Better performance per watt and further workload acceleration
- Higher DDR5 speeds, larger share cache, and increased inter-socket bandwidth
- Pin compatible with preview generation
Intel® Core™ processors (14th)
- Newest performance hybrid design combining Performance-cores with Efficient–cores supporting up to 24 cores/ 32 threads for outstanding Multi Threaded performance
- DDR5-4800/DDR5–5600, DDR4-3200
- Optimized for edge/IoT applications
Network Edge and Open RAN
The short-depth SKY-8 series servers are a powerful solution designed for business-critical applications including but not limited to private 5G, Open RAN and enterprise networking. The SKY-8136S is an optimized single-socket 1U server designed for high reliability. The SKY-8134S-11 is a carrier-grade server that improves vRAN and private 5G performance, density, energy and TCO, featuring up to 16x 25GbE ports in a compact 1U form factor. The SKY-820V3 is a short-depth server that maximizes PCIe density to integrate high-performance accelerators. Its compact design makes it ideal to consolidate network edge workloads with the objective of improving infrastructure efficiency.
Intel® Xeon®
6 Processors
5th Gen Intel® Xeon®
Scalable processor
SKY-8136S
Short Depth 1U Edge Server
- Intel® Xeon® 6 Processors
- 8 x DDR5 6400 MT/s ECC RDIMM
- 2 x PCIe 5.0 x16 slots (FH|FL) , 1 x PCIe 5.0 x16 (FH|HL) + 1 x PCIe 5.0 x8 slots (LP)
- Up to 4 x hot-swap SFF NVMe(PCIe 5.0 x4) SSDs
- 2 x 10GbE(Management ports)
SKY-8134S-11
Edge Server for Open RAN & MEC
- 1U 5th/4th gen Intel® Xeon® Scalable processors (205W TDP)
- 8 x DDR5 DIMMs, up to 2TB
- 1 x PCIe 5.0 or OCP 3.0 slot
- Up to 12 x 25GbE + 2 x 100GbE ports
- IEEE 1588 PTP, SyncE and integrated GNSS for high-precision timing sync
- 2 x internal M.2 SATA3/NVMe SSD
- -40 to +65°C operating temperature range
SKY-820V3
Edge & 5G BBU Server
- 2U dual 5th/4th gen Intel® Xeon® Scalable processors (250W TDP)
- 16 x DDR5 ECC-REG RDIMM/LRDIMM
- 4 x PCIe 5.0 x16, can support dual width 3/4L GPU card
- 2 x 1GbE RJ45, 2 x 10GbE SFP+
- Up to 6 x 2.5" SATA/SAS drive bays
- Front I/O access, wide operating temperature
High-Performance Computing and Storage
For next-generation hyper-converged infrastructure and storage, Advantech has upgraded its server range to leverage increased Intel® Xeon®6 Processors capacity including fastest data mobility between compute, storage and networking layers thanks to hardware-enabled Intel Data Streaming Accelerator (Intel DSA). These single and multi-node designs are trusted by leading hyper-converged infrastructure, backup and recovery solution providers to meet increasing data center latency and computing needs. They maximize storage performance and help build solid data center solutions for next-generation digital enterprise needs.
Intel® Xeon®
6 Processors
5th Gen Intel® Xeon®
Scalable processors
SKY-712V4
1U HPC Server
- Dual Intel® Xeon® 6 processors
- 2 x PCIe 5.0 slots, 1 x OCP 3.0 slot
- 2 x RJ45 10GBase-T or GbE ports
- Supports up to 12 x 2.5” or 8 E3.S NVMe drives
SKY-722V4
2U HCI Server
- 1U and 2U Intel DC-MHS compliant server using M-FLW HPM
- 3 x FH | 3/4L PCIe 5.0 x16 (DW) + 2 x Low Profile PCIe 5.0 x8
- 16 x hot swap 2.5” NVMe SSD
- 32 x DDR5 ECC RDIMM up to 6400 MHz
- Supporting of Intel Gen6 P-cores and E-cores Processor up to 350W
SKY-8134DU
1U High-Performance Server
- Dual 5th/4th gen Intel® Xeon® Scalable processors (185W TDP)
- 2 x PCIe 5.0 x16 SLOTS, 1 x ocp 3.0 slots
- 2 x GbE ports
- 12 x NVMe/SATA3 SSD, 2 x internal M.2 NVMe/SATA3 SSD
SKY-9234S3
4-Node Server
- Up to 4 x Hot-Swappable CPU Node boards support single 5th/4th gen Intel® Xeon® Scalable processors
- 1 x OCP3.0 + 1 x HHHL PCIe 5.0 slot + 1 x U.2 SSD per node
- Up to 8 x DIMM sockets DDR5 5600MHz RDIMM per Node
- 12 x 3.5" SATA HDD (4 per node)
Industrial AI & Equipment
Advantech introduces new motherboards and servers for advanced machine vision, AI inference and training, deep learning, and video analytics in the industrial, medical, and IoT sectors. Powered by Intel Deep Learning Boost and the latest Advanced Matrix Extensions, this lineup delivers superior AI inference performance. The motherboards, in ATX, EATX, support up to four double-deck GPU cards.
Manufacturers can leverage Intel® Xeon® 6 Processors and Intel® Core™ processors (14th)-based motherboards for edge AI applications like machine automation and vision. Flexible deployment options include a standard server board or bundled Advantech HPC server chassis HPC server chassis bundled.
With support for DDR5 ECC/Non-ECC UDIMMs up to 128GB and versatile PCIe expansion slots, these industrial motherboards excel in compute-intensive edge AI tasks. Ideal for low-power, compact, and wide-temperature-range industrial edge environments.
Intel® Xeon®
6 Processors
5th Gen Intel® Xeon®
Scalable processors
Intel® Xeon® W Processors
SKY-622G4
2U GPU Server
- Intel® Xeon® 6 Processors
- 24 x DDR5 ECC/RDIMM
- 8 x PCIe 5.0 x16 Dual Slot GPU
- 8x 2.5” SATA/SAS or U.2
- 3+1 2000W CRPS

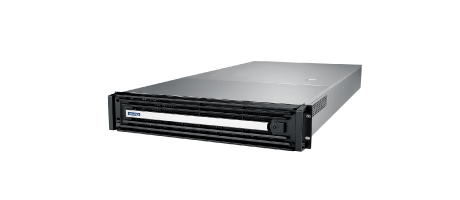

SKY-620V3
2U GPU Server
- Dual 5th/4th gen Intel® Xeon® Scalable processors
- DDR5 5600MHz RDIMM up to 4TB
- Supports 6 x PCle 5.0 x16 double-deck cards
- Support up to 6 x U.2 NVMe drives and up to 8 x SASA/SATA drives

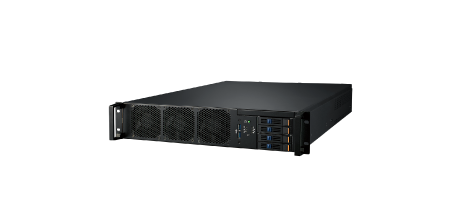

HPC-6240+ASMB-622V3
2U Edge Accelerator Server
- 5th/4th gen Intel® Xeon® Scalable processors
- DDR5 5200MHz RDIMM up to 4TB
- 8 x PCIe 5.0 expansion slots
- 2 x onboard M.2 2280/22110 (SATA/PCIe compatible)
- Flexible I/O Design

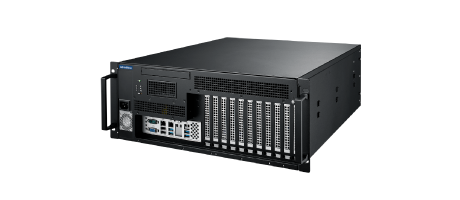

HPC-7420+ASMB-977
4U Edge Accelerator Server
- Dual 5th/4th gen Intel® Xeon® Scalable processors
- DDR5 5600MHz RDIMM up to 4TB
- 10 x PCIe 5.0 expansion slots
- Rear-accessible system fan without opening top cover for Easy maintenance
ASMB-818
ATX Server Board
- Intel® Xeon® 6 Processors
- 8 x DIMM DDR5 (5600MHz)
- 3 x PCIe 5.0 x16+ 2 x PCIe 5.0 x8+ 1 x PCIe 4.0 x4
- 2 x 10G,2 x 2.5G
- IPMI with dedicated NIC
- Up to 350W
ASMB-928
E-ATX Server Board
- Intel® Xeon® 6 Processors
- 16 x DDR5 RDIMM
- 4 x PCIe 5.0 x16 +2 x PCIe 5.0 x8
- 1 x MCIO x8 (Gen 5)
- 2 x 10G, 2 x 2.5G
- Dedicated NIC for IPMI
ASMB-817
ATX Server Board
- 5th/4th gen Intel® Xeon® Scalable processors
- DDR5 5600 MHz RDIMM up to 2 TB
- Features 3 x PCIe x16, 2 x PCIe x8, 1 x PCIe x4, and 1 x PCIe x1
- 8 x SATA 3 and 1 x M.2 connector (SATA/PCIe compatible)
- Recommeded Chassis: HPC-7000, HPC-7420
ASMB-927
E-ATX Server Board
- 5th/4th gen Intel® Xeon® Scalable processors
- DDR5 5600 MHz RDIMM up to 4 TB
- Features 4 x PCIe x16, 2 x PCIe x8
- 9 x SATA 3 and 1 x M.2 connector (SATA/PCIe compatible)
- Recommeded Chassis: HPC-7484, HPC-7485

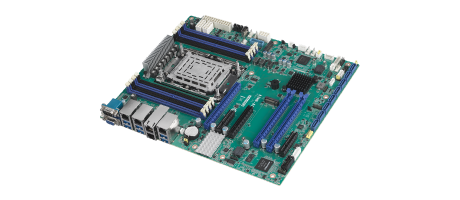

ASMB-807
ATX Server Board
- Intel® Xeon® W Processors, TDP up to 385W
- DDR5 RDIMM 4800/5200/5600 (W-3500/2500) and 4400/4800 (W-3400/2400)
- Features 3 x PCIe 5.0 x16, 1 x PCIe 5.0 x8, and 2 x PCIe 4.0 x4
- 8 x SATA 3 and 2 x M.2 connectors (PCIe x4)
- Recommeded Chassis: HPC-8208, HPC-7484

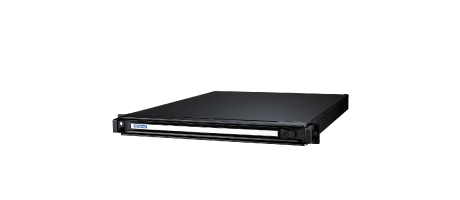

HPC-6120+ASMB-610V3
1U Edge Accelerator Server
- Intel® Core™ processors (14th/13th/12th)
- DDR5 5200MHz UDIMM up to 128GB
- Features 1 x PCIe x16 or 2 x PCIe 5.0 x8, 2 x PCIe 4.0 x4
- 4 x SATA 3 and 1 x M.2 connector (SATA/PCIe compatible)
- Flexible I/O Design
ASMB-588
MicroATX Server Board
- Intel® Core™ processors (14th/13th/12th)
- DDR5 4400 MHz UDIMM up to 128GB
- Features 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
- 5 x SATA 3 and 1 x M.2 connector(PCIe)
- Recommeded Chassis: HPC-5000, HPC-7120S
ASMB-788
ATX Server Board
- Intel® Core™ processors (14th/13th/12th)
- DDR5 4400 MHz UDIMM up to 128GB
- Features 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
- 5 x SATA 3 and 1 x M.2 connector(PCIe)
- Recommeded Chassis: HPC-8208, HPC-7484
Enterprise Networking and Security
Advantech's network edge and security solutions deliver seamless performance and future-proof capabilities for diverse network environments. Optimized for LANs and WANs, they provide robust cybersecurity, advanced network monitoring, and enhanced threat detection through Deep Packet Inspection (DPI) technology.
With built-in Intel® QuickAssist technology and powered by the latest Intel® Xeon® 6 and 5th Gen Xeon® Scalable processors, our 2U network appliances deliver exceptional performance, high bandwidth, faster data transmission, and excellent scalability with supporting up to 8 network module cards. These appliances are designed to efficiently manage complex network traffic, AI workloads, and data-intensive applications. Additionally, we offer a range of network appliances powered by Intel® Core™ and Intel Atom® processors to address the evolving needs of gateway and firewall from small branches to large enterprises.
Intel® Xeon®
6 Processors
5th Gen Intel® Xeon®
Scalable Processor
Intel® Core™
processors (14th)
Intel Atom®
7000 Series processors
FWA-6173
2U Network Appliance
- Dual Intel® Xeon® 6 Processors
- 16 x DDR5 ECC RDIMM slots
- Hot-swap 2.5" disk bays and system fan, redundant 1600W
- CRPS, 2 x FH/HL Gen5 PCIe x16 slots
- 8 x network module expansions w/ PCIe Gen5 bandwidth
FWA-6172
2U Network Appliance
- Dual 5th Gen Intel® Xeon® Scalable Processors, up to 104 Cores
- 16 x DDR5 RDIMMs, up to 1TB
- 8 x network module expansions
- 1 x double-deck GPU or 2 x FH/HL PCIe 5.0 x16 slot
- 2 x 2.5” and 2 x 2280 M.2 SATA or NVMe SSD
- 1200W Redundant PSU
FWA-6072
2U Network Appliance
- Single 5th Gen Intel® Xeon® Scalable Processors, up to 60 Cores
- 16 x DDR5 RDIMMs, up to 1TB
- 8 x network module expansions
- 1 x FH/HL PCIe 4.0 x16 slot
- 2 x 2.5” SATA SSD and 2 x 2280 M.2 SATA or NVMe SSD
- 800W Redundant PSU
FWA-5072
1U Network Appliance
- Single 5th Gen Intel® Xeon® Scalable Processors, up to 60 Cores
- 16 x DDR5 RDIMMs, up to 1TB
- 4 x network module expansions
- 1 x HH/HL PCIe 4.0 x16 slot
- 2 x 2.5” SATA SSD and 2 x 2280 M.2 SATA or NVMe SSD
- 550W Redundant PSU

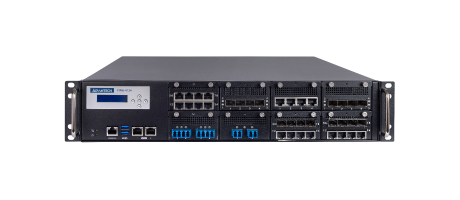

FWA-4134
2U Network Appliance
- Single Intel® Core™ Processors (14th/13th/12th), up to 24 Cores
- 4 x DDR4 3200MHz UDIMMs, up to 128GB
- 8 x network module expansions
- 1x Mini-PCIe slot
- 1x PCIe x8 slot for FH/HL add-on cards
- 1 x mSATA slot, 2/4 x 3.5” HDD bays
- 350W Redundant PSU
FWA-3034
1U Network Appliance
- Single Intel® Core™ Processors (14th/13th/12th), up to 24 Cores
- 2 x DDR5 UDIMM(ECC and Non-ECC), up to 64GB
- 1 x NMC slot with 100GbE bandwidth
- 8 x 2.5GbE RJ45, 2 x 1GbE SFP, and 2 x 10GbE SFP+
- 1 x FH/HL PCIe 4.0 x8 slot
- 2 x 2.5” SATA SSD and 1 x 2280 M.2 SATA/NVMe SSD
- 300W Redundant PSU

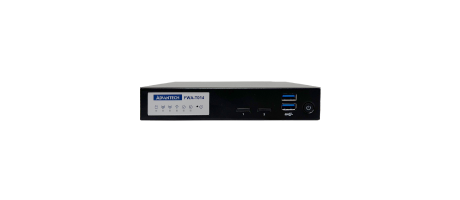

FWA-T014
Desktop Network Appliance
- Single Intel Atom® 7000 Series processors, up to 8 cores
- 1 x DDR4 3200MT/s SODIMM up 32GB
- Support 4 x 2.5GbE RJ45 for higher throughput
- Support Wi-Fi & 5G/4G LTE connectivity
- Extremely compact size is flexible for SMBs deployment
- IPMI v2.0 compliant BMC with web interface
