Upgrade Your Infrastructure Performance for the New AIoT Era
The combination of 5G and the Artificial Intelligence of Things (AIoT) makes industries and enterprises to transform their infrastructure to build a more intelligent edge that able to manage the increasing number of connected devices and turn edge generated data into competitive advantage.
Advantech has developed new motherboards, servers and network appliances based on the new 4th Gen Intel Xeon Scalable processor and 13th Gen Intel Core processor that deliver unprecedented performance and scalability with higher core count, memory bandwidth and I/O capacity to help industrial, networking and enterprise equipment vendors and service providers
Workload Optimized
Performance
High Scalability
& Reliability
Density & Efficiency
for the Edge
Flexible Business
Model
4th Gen Intel Xeon Processor
- Up to 52 high-performance cores
- Up to 8 x DDR5 channels and 80 lanes of PCIe 5.0
- Built-in accelerators for fast-growing edge AI, network edge, security, storage and HPC workloads
- Highly optimized platforms to achieve sustainability goals
13 Gen Intel Core Processor
- Up to 24 hybrid cores and 32 threads for powerful multitasking
- PCIe 5.0 connectivity, DDR5 memory and higher L2/L3 cache on selected SKUs to give more control over workload prioritizing
- Hardware-enabled AI acceleration with Intel Deep Learning Boost which, boosts AI training and inference with fast in GPU image classification performance
Network Edge and Open RAN
The new SKY-8 series servers provide solution vendors, system integrators and service providers with a powerful tool to optimize the access network while meeting 5G and beyond traffic, signal processing and AI computing needs. The SKY-8134S-11 is an innovative and unique in the market LOM (LAN on motherboard) server that improves Open RAN DU performance, density, energy efficiency and cost. It integrates up to twelve 25GbE and two 100GbE ports for front-haul and mid-haul connectivity with PTP, SyncE and GNSS for high precision time synch in an ultra-short depth 1U, 290mm depth form factor that preserves all the carrier-grade features of preview generations to meet NEBS-3 requirements.
The SKY-820V3 is a short-depth server that maximizes PCIe density to integrate high-performance accelerators. Its compact design makes it ideal to consolidate network edge workloads with the objective of improving infrastructure efficiency.
4th Gen Intel® Xeon®
Scalable Processor

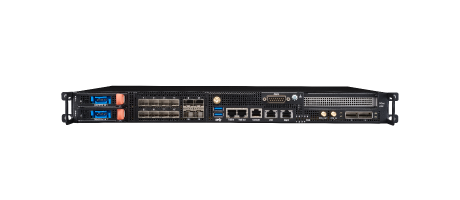

SKY-8134S-11
Edge Server for Open RAN & MEC
- Single socket up to 32c (205W TDP)
- 8 x DDR5 DIMMs, up to 2TB
- Up to 12 x 25GbE + 2 x 100GbE ports
- 1 x PCIe 5.0 or OCP 3.0 slot
- IEEE 1588 PTP, SyncE and integrated GNSS for high-precision timing sync
- 2 x internal M.2 SATA3/NVMe SSD
- -40 to +65°C operating temperature range
- 1U, 290mm depth

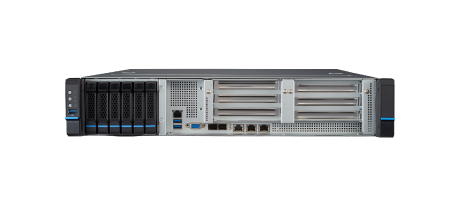

SKY-820V3
Edge & 5G BBU Server
- 2U dual socket LGA4677 Intel 4th Gen. Xeon Scalable Processor, front I/O access, wide operating temperature
- 2 x 1GbE RJ45, 2 x 10GbE SFP+
- 4 x PCIe 5.0 x16, can support dual width 3/4L GPU card
- 2 x PCIe 5.0 x16, 4 x PCIe 5.0 x8 up to 6 x 2.5" hot-swappable drives
Industrial AI & Equipment
Advantech has introduced new motherboards and servers to enable next-generation machine vision, deep learning or video analytics applications for the industrial, medical or IoT markets. Combined with built-in acceleration from Intel Deep Learning Boost (Intel DL Boost) with new Intel Advanced Matrix Extensions (Intel AMX), the new range provides impressive AI inference performance compared to previews generation solutions. The new motherboards include ATX, EATX and proprietary form factors and can integrate up to four double-deck GPU cards.
In addition, industrial equipment manufacturers can leverage the new motherboards based on 13th Gen Intel Core processor which have been designed for edge AI use cases such as machine automation and machine vision. They provide flexible implementation options through standard microATX and ATX form factors or bundled with Advantech HPC server chassis.
The industrial motherboards support latest DDR5 ECC/Non-ECC UDIMMs up to 128GB and a rich mix of PCIe expansion slots to accelerate compute-intensive edge AI use cases. They are ideal for industrial edge environments that require low power, compact size and wide operating temperature range solutions.
The 13th Gen Intel®
Core™ Processor
4th Gen Intel® Xeon®
Scalable Processor

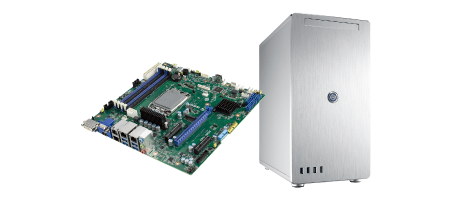

- 12/13th Gen. Core™ i9/i7/i5/i3 processors
- DDR5 4400 MHz UDIMM up to 128GB
- Features 1 x PCIe x16, 2 x PCIe x4
- 5 x SATA 3 and 1 x M.2 connector (PCIe)

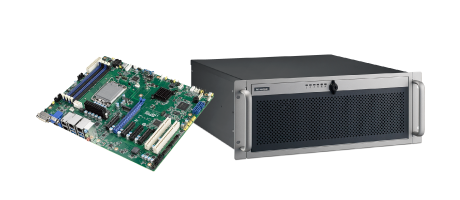

ASMB-788 + ACP-4340
- 12/13th Gen. Core™ i9/i7/i5/i3 processors
- DDR5 4400 MHz UDIMM up to 128GB
- Features 1 x PCIe x16, 4 x PCIe x4
- 4 x SATA 3 and one M.2 connector (PCIe)
- 12/13th Gen Intel® Core™ i9/i7/i5/i3 Processor
- DDR5 4400 MHz ECC/Non-ECC UDIMM up to 128GB
- Features 1 x PCIe x16 or 2 x PCIe x8 slots, 2 x PCIe x4
- 4 x SATA 3 and 1 x M.2 connector (SATA/PCIe compatible)

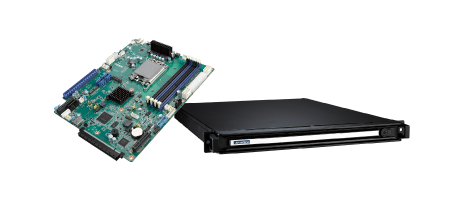

- 4th Gen Intel® Xeon® Scalable Processors
DDR5 4400 MHz RDIMM up to 2 TB - Features 2 x PCIe x16 and 4 x PCIe x8
- 5 x SATA 3 and 2 x M.2 connectors (SATA/PCIe compatible)
- 4th Gen Intel® Xeon® Scalable Processors
Support up to 8 Full-height PCIe 5.0 expansion cards - Flexible IO design
- Onboard M.2 2280/22110 B+M Key (PCIe 4.0 + SATA)
- Increased memory bandwidth with DDR5

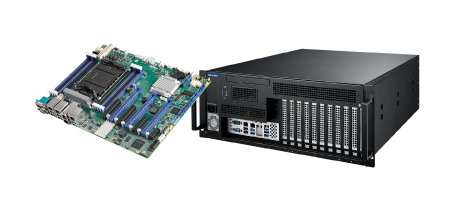

- 4th Gen Intel® Xeon® Scalable Processors
DDR5 4800 MHz RDIMM up to 512 GB - Features 4 x PCIex16 and 2 x PCIex8
- Eight SATA 3 and one M.2 connectors (SATA/PCIe compatible)

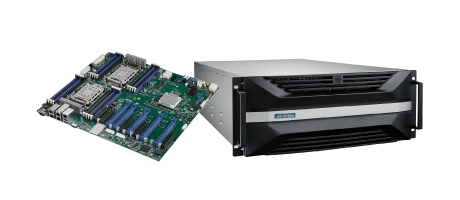

- 4th Gen Intel® Xeon® Scalable Processors
Support 5 x PCIex16 and 5 x PCIex8 - 3 x double-deck GPU Card support or 2 x 3-slot GPU Card support
- 16 x DDR5 R-DIMM, maximum 4TB Capacity, each CPU support 4 x Crow pass support

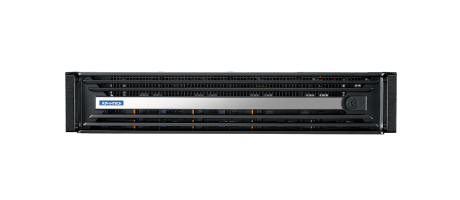

SKY-620V3
- Dual Intel 4th Gen Xeon scalable processors
- Supporting 6 x PCIe x16 Double-Deck Cards Plus 2 x PCIe x8 Single-Deck Cards
- 16 DDR5 slots supports Optane persistent memory 300 series (Crow Pass)
- 6 x PCIe 5.0 x16, 6 x PCIe 5.0 x8
- Support up to 6 U.2 NVMe drives and up to 8 SASA/SATA drives
Contact Us
For more information or if you are interested in evaluation units, please contact us.
