Ethernet Communication for Transportation Hub Surveillance
A well-planned surveillance system improves travel experiences and staff reliability
Transportation hubs, like airports, ferry terminals, and train/bus stations are usually located in densely populated areas. Accordingly, expansive surveillance systems are needed to ensure traveler and staff security. The corresponding extensive use of CCTV cameras creates problems related to wiring and data transmission.
Advantech provides three major solutions for transportation hub network communication that help address wiring and transmission difficulties — notably PoE solutions, wireless network solutions, and network management solutions.
PoE (Power over Ethernet) technology reduces wiring by enabling network cables to transfer electricity.
Advantech intelligent PoE wiring solutions help users find PoE devices that fit their needs.
Power over Ethernet (PoE)
Advantech switches, media converters, injecters, splitters & cellular routers leverage PoE.
- Flexibly install, power-up, and communicate with individual P.D. devices
- Deliver power and data with one cable
- Reduce maintenance costs and cable weight
IEEE802.3bt 90W PoE
Advantech managed Ethernet switches and extenders support IEEE802.3bt 90W PoE output
- An excellent choice for high-tech PoE PD devices with high power consumption
- Backward compatible with 15 ~ 30W PoE mainstream applications
Unmanaged 30W PoE Ethernet Switches
EKI-2000 Series
- Ranging from 5 ~ 28 ports
- DIN-rail, wall, and rack mount designs
- Fast Ethernet or gigabit Ethernet
- Optional fiber ports
(Get online course)
Managed 30W PoE Ethernet Switches
EKI-7000 Series
- Ranging from 6 ~ 20 ports
- Support fast Ethernet or gigabit transmission
- Support WebAccess/NMS network management system
- Support Advantech Security Pack to deter cyber threats

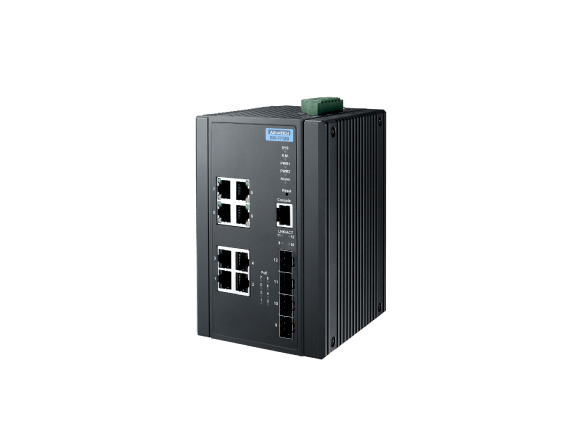

Managed 90W Mega PoE Ethernet Switch
EKI-7712G-4FMPI
- 2 x IEEE 802.3bt 90W PoE ports
- 6 x IEEE 802.3at/af PoE ports
- 4 x SFP ports
- NEMA TS2 for traffic control
Multi-speed 90W Mega PoE Injector
EKI-2701MPI-5G
- Supports multi data rate 10M/100M/1G/2.5G/5G
- IEEE 802.3af/at/bt compliant
- Force mode power supports up to 90W by DIP switch
- Power input 54~57 VDC
Emerging communication and wireless technologies enable sensing, in-vehicle networking, and other innovative applications. Despite this, identifying cost-effective wireless solutions for applications remains challenging. Advantech wireless solutions are used in a wide variety of industries and will continue to influence the future of IoT.
Dual SIM Card Slots
- Advantech’s cellular router supports 2 x SIM card slots — fulfilling cross-country and multi-carrier communication needs.
Dual-band Wi-Fi Connectivity
- Supports 2.4/5 GHz dual-band Wi-Fi transmission
- Helps operators prevent frequency band conflicts
- Delivers stable high-performance Wi-Fi communication
Entry-Level 4G Routers
ICR-2000 Series
- LTE Cat.4 with 3G/2G fallback
- Up to 2× SIM
- Up to 4× Ethernet, RJ45, 10/100 Mbps
- Optionally 1× RS232, 1× RS485, 1× DI, 1× DO
- Linux based OS & SW customization
Industrial IoT 4G LTE Routers & Gateways
ICR-3200 Series
- Powerful CPU with 1.3 GB storage to host customer SW applications
- 2× SIM with cover, eSIM ready
- 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
- Optionally Wi-Fi 802.11ac, Bluetooth v5.1 (class 1)
- Optional GNSS receiver
Industrial Wi-Fi Access Points
EKI-6333AC Series
- Support dual band 2.4/5 GHz (selective/ concurrent)
- Provide Web-based configuration
- Support 802.11ac MIMO 2T2R
- Optional 802.3at PSE support
Industrial Wi-Fi Client with Serial Port
EKI-1360 Series
- Link any serial device to an IEEE 802.11 a/b/g/n network
- Provide COM port redirection, TCP, UDP, and pair connection modes
- Support up to 921.6 kbps, and any baud rate setting
- Modbus TCP and Modbus RTU support (optional)
Advantech’s intelligent connectivity software platform provides provisioning and software that accommodates different user scenarios by enabling customized management. This platform provides the following features: remote IP-based device management, remote cellular router provisioning, fast network deployment, network redundancy, and cyber security protection.
Network Management Software (NMS & VPN)
- Advantech WebAccess/NMS network management system enables remote IP-based device management
- Advantech WebAccess/VPN secure networking platform guarantees reliable and confidential data transmission
Advantech Fast Deployment (IXM)
- Advantech IXM technology delivers fast deployment and saves engineering time and costs.
Advanced Secure Networking Platform for Cellular Routers and Gateways
WebAccess/VPN
- Secure Private Networks in Internet
- Encrypted & Reliable Communication
- Centrally defined VPN topology
- Managed LAN, 1:1 NAT modes
- Firewall & Access Control
Network Management System
WebAccess/NMS for IP-based Devices
- Cross-browser, cross-platform based on HTML5
- Supports all Advantech IP-based devices & extension of 3 party devices
- Enables scaling up to 4000 nodes
- Advanced NMS function – remote desktop, remote configuration, and alarm playback
Worldwide Success Stories and Topologies
Ensure the Most Reliable Networking Transmission for Hong Kong International Airport
Building Robust and Reliable Network Infrastructure for Dubai Airport
High-Power PoE Solution for Harsh Industrial Networking Environment at Dubai Port
Implementation of Advantech Cellular Router Solution for Real-time Monitoring of Sydney Ferries
More Downloads
Advantech Intelligent Transportation System Solution
Intelligent transportation systems (ITS) integrate traditional traffic management, advanced traveler information systems, and public transportation solutions. Implementing the right technology delivers ITS success.
Advantech offers the following M2M (machine-to-machine) transportation solutions for trouble-free connectivity and data communications
Advantech Intelligent Connectivity Solution
In the age of Internet of Things (IoT), the trend in industrial communication for all devices, equipment, and machines to be able to connect and communicate with each other to increase productivity, efficiency, and scalability has become essential.
The core mission of Advantech's iConnectivity Group is to offer the best-in-class industrial communication solutions including both wired and wireless technologies that can truly help users leverage the full potential of IoT in the most efficient and productive way.
